ZEMAN
SBA CONTI
The SBA Conti design is chosen by manufacturers who operate a system with a continuous material flow, allowing easy integration into existing material handling and the requirement for high performance with fully welded structural steels.
FEATURES:
SIZE:
Overall machine length: 65545m / 78145m / 83525m
Overall machine width: 10420mm
Overall machine height: 6000mm
SBA2 (Double Line)
Overall Machine Width: 15135mm
CAPACITY:
Max. beam weight: 6000 Kg
Max. add – part weight: 200 Kg
Main profile length: 12m / 16m / 18m
WELDING:
Welding system: MAG
Type of welding: fillet, groove and partial penetration
Welding wire: G3Si1
Single – layer welding seam size: a3 – a6 3/16″ – 5/16″
Multi – layer welding seam size: a8 – a15 7/16″ – 3/4″
FEATURES:
- Highest Automated Line.
- Laser Measurement.

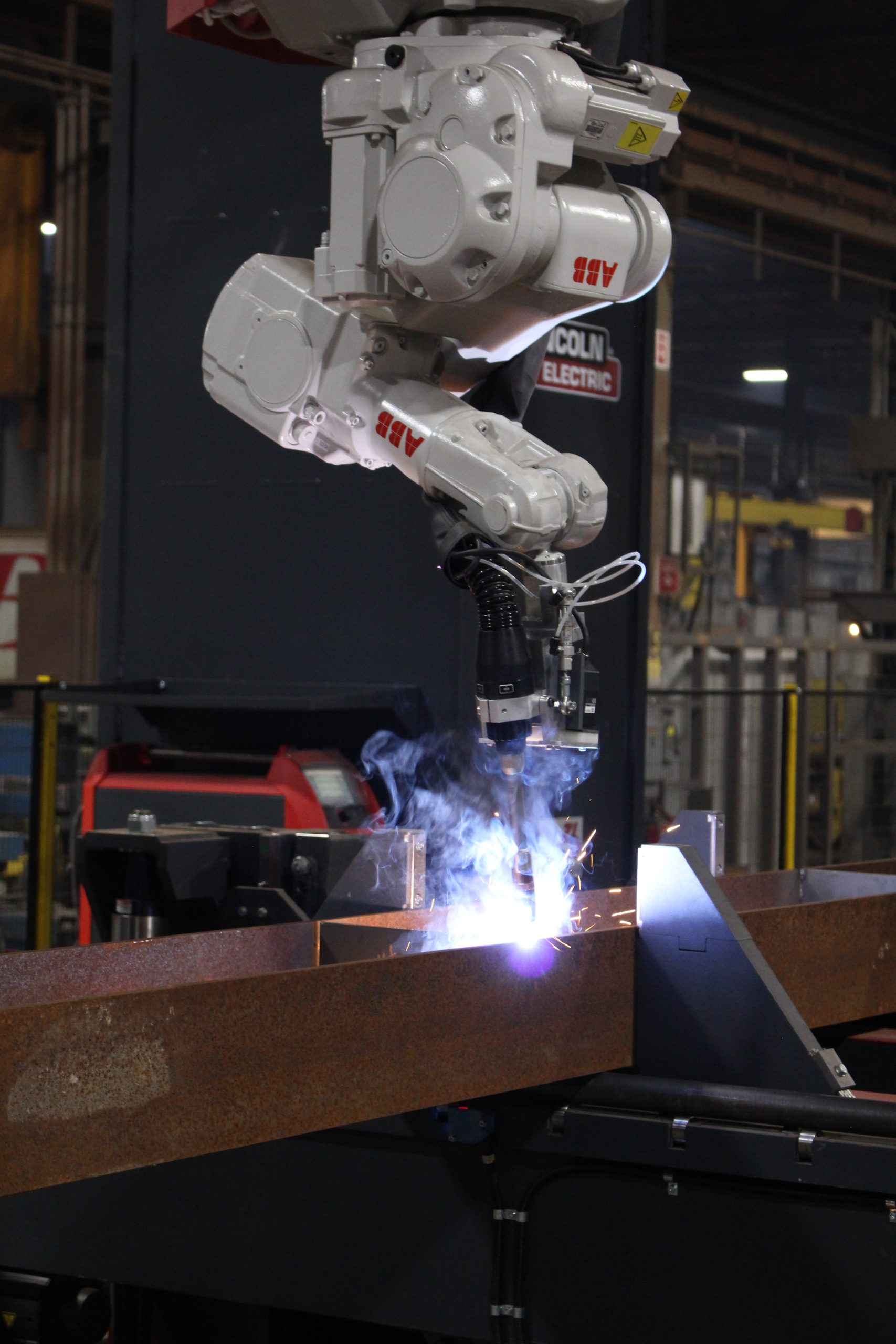

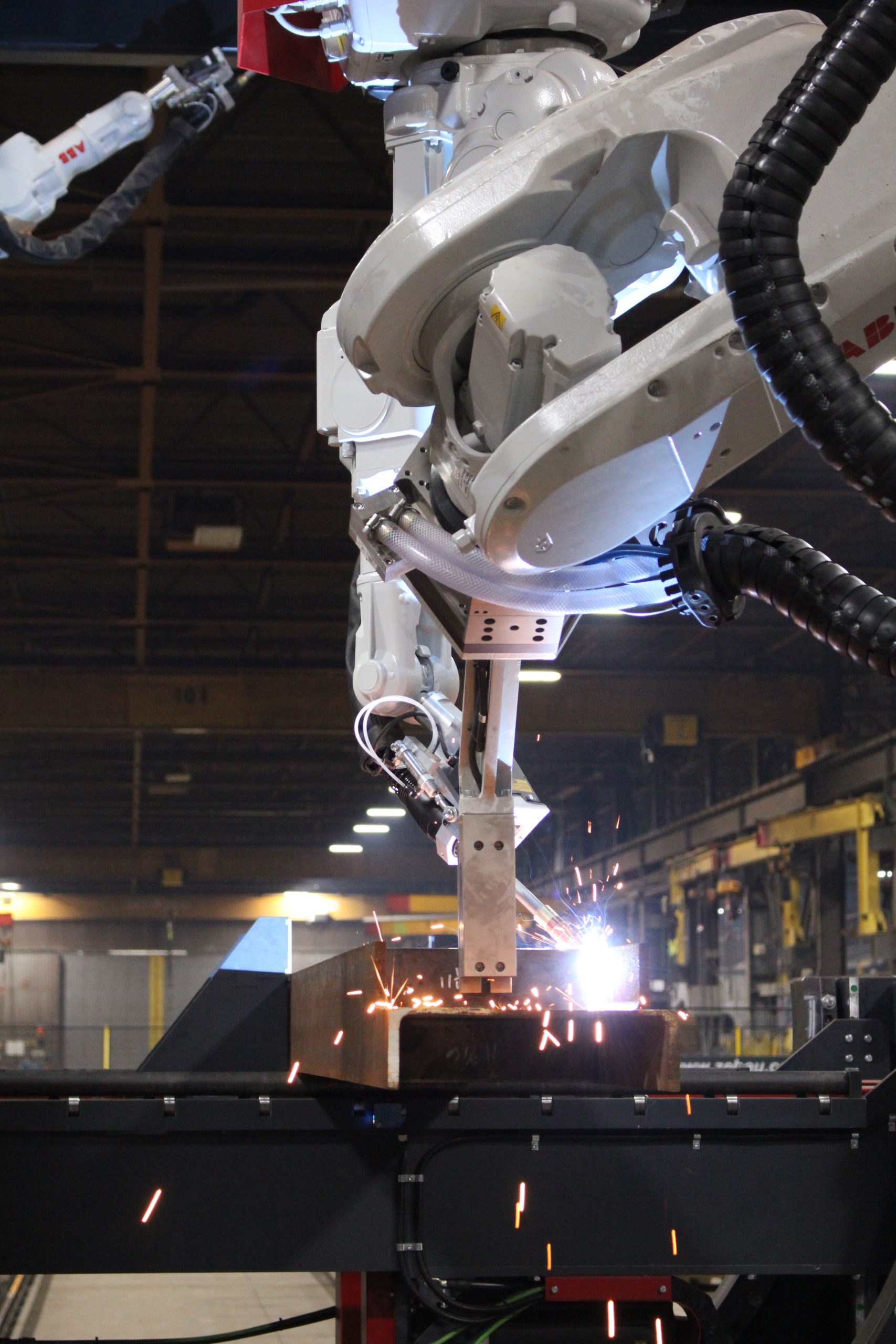

- Tack & Weld Robot for fully automated and perfect beam assembly with up to 4 welding robots at our double line.
- Parts Scanning Unit.
- Integrated profile turning device.
- Profile clamping unit.
- Fully automated production.
- ProFIT Software.
