ZEMAN
SBA COMPACT

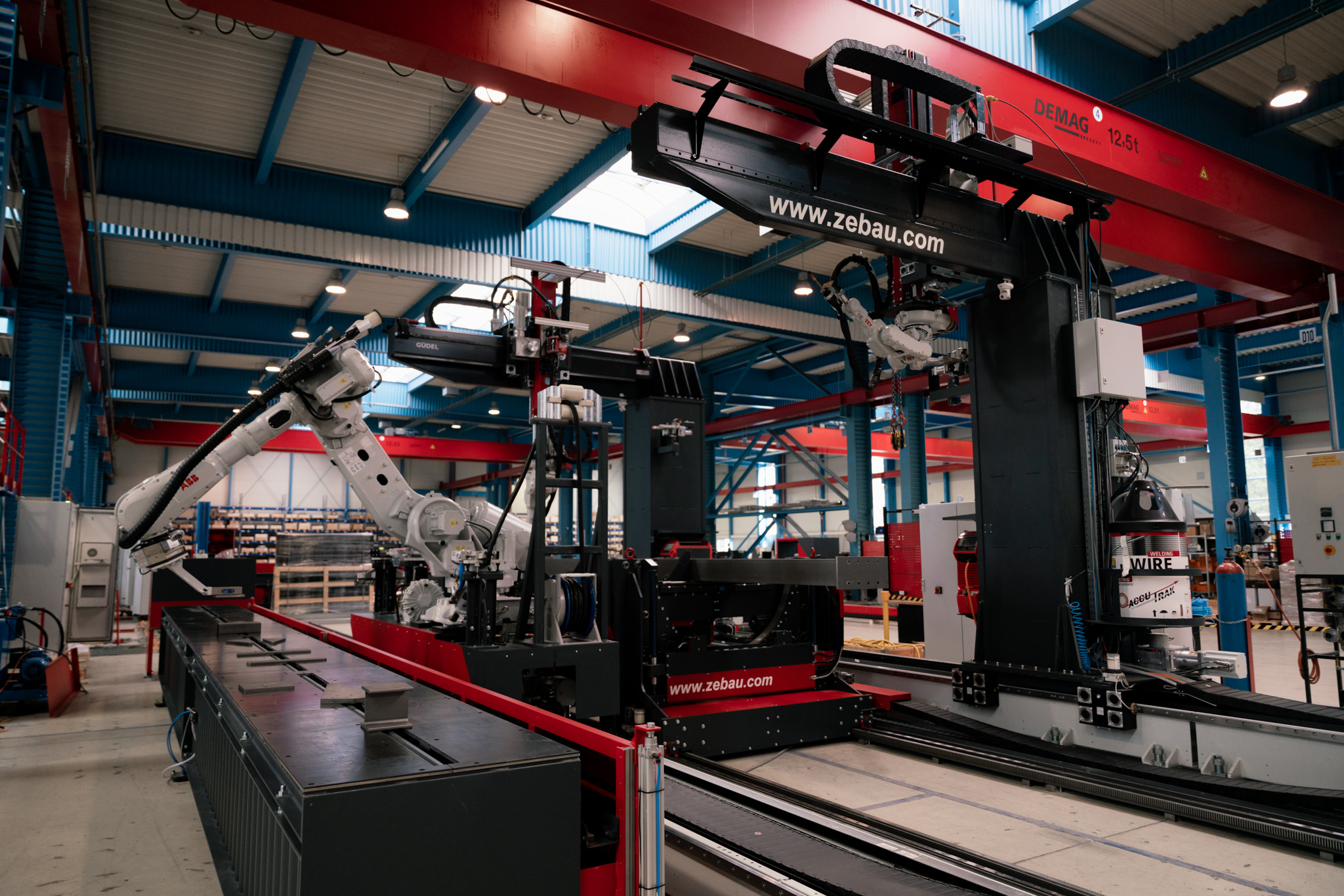

Optimized for assembly, the SBA Compact consists of 1 robot for assembly, spot welding and finishing. Feeding beams requires a crane and the machine fits in a length of only 26 metres.
FEATURES:
Overall machine length: 24260mm / 28240mm / 30280
Overall machine width: 9710mm
Overall machine height: 6000mm
CAPACITY:
Max. beam weight: 6000 Kg
Max. add – part weight: 200 Kg
Main profile width: 1500mm
Main profile length: 16m / 18m
WELDING:
Welding system: MAG
Type of welding: fillet, groove and partial penetration
Welding wire: G3Si1
Single – layer welding seam size: a3 – a6 3/16″ – 5/16″
Multi – layer welding seam size: a8 – a15 7/16″ – 3/4″
FEATURES:
- Modular Design.
- Laser Measurement.
- Tack & Weld Robot for fully automated and perfect beam assembly.
- Parts Scanning Unit.
- Integrated profile turning device.
- Profile clamping unit.
- Fully automated production.

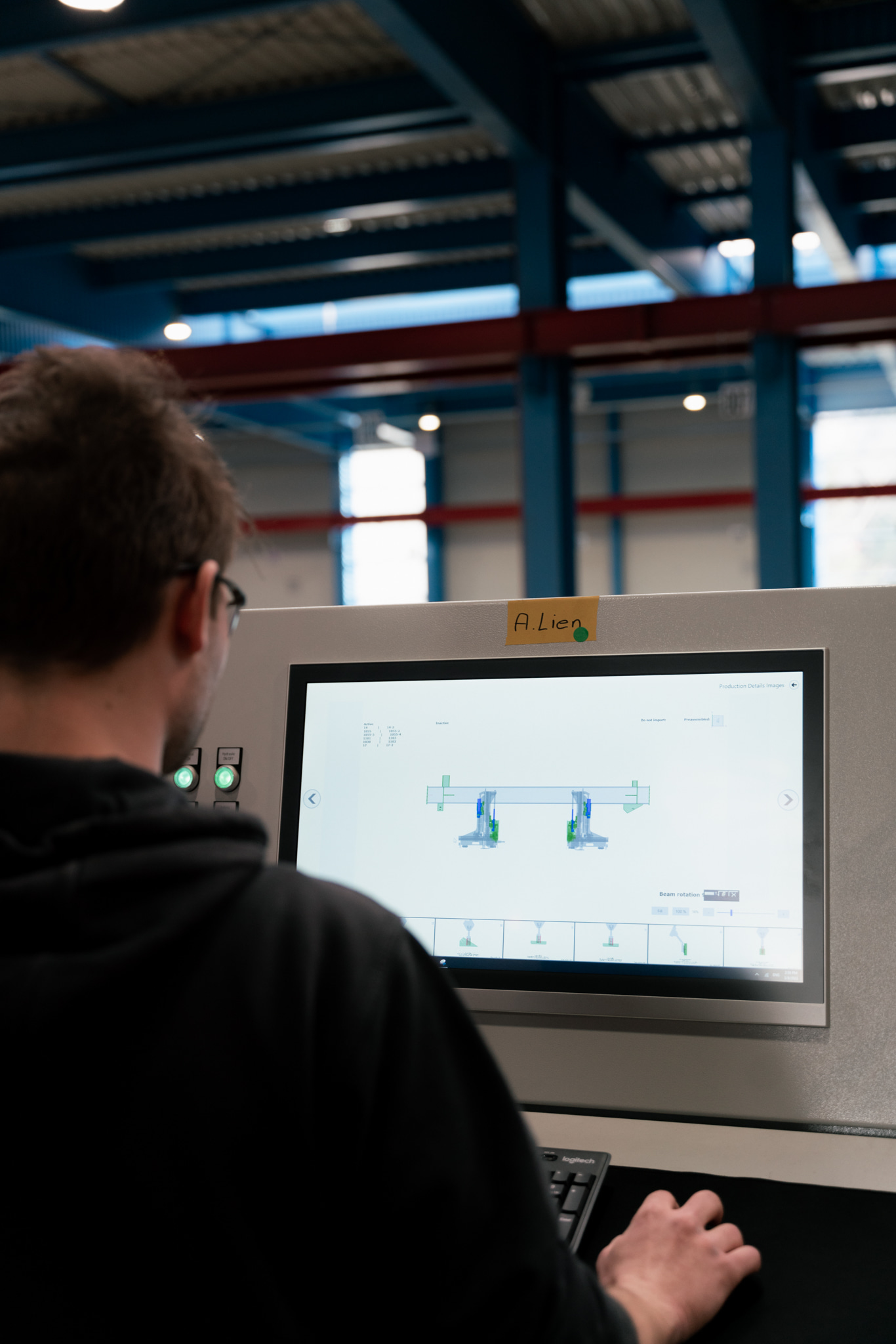

- ProFIT Software.
