WP LINE ROTARY TABLE

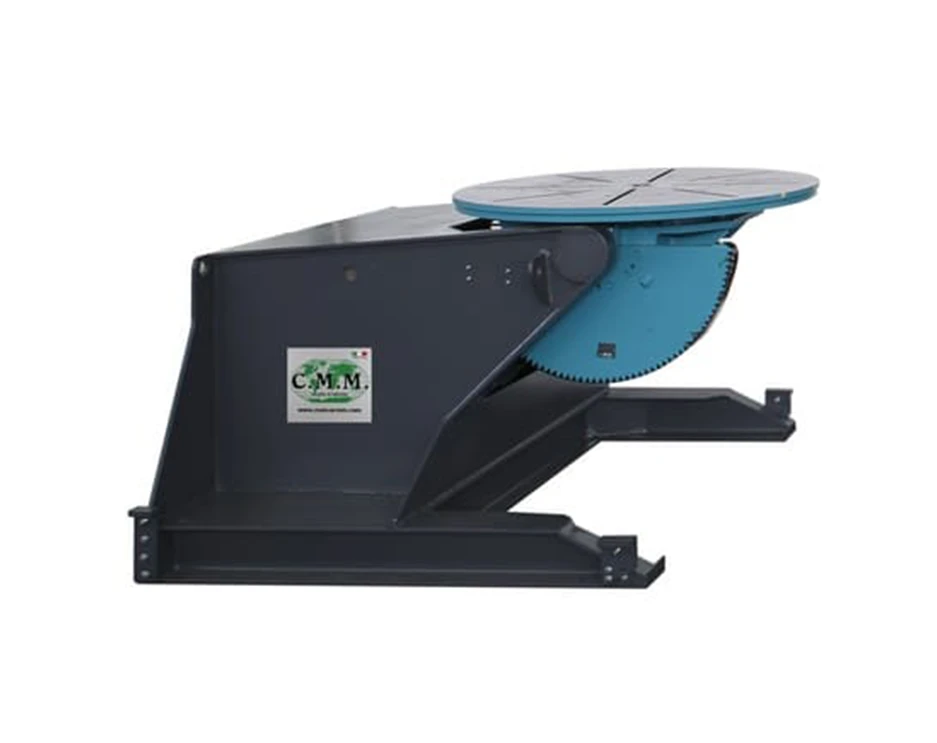

Two-axis rotary table: rotation (motorized at variable speed) and tilt (motorized or hydraulic). The load capacity varies from 500 to 12,000 kg.

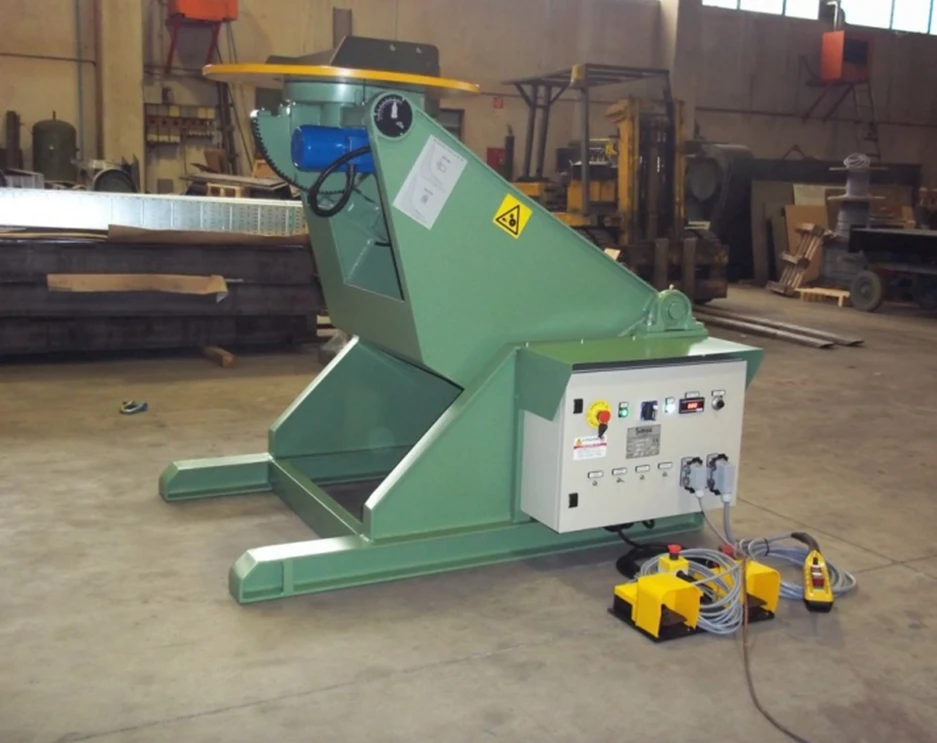

Three-axis table positioner; To the two axes of the WP model, elevation is added as a third axis that always ensures an optimal working position.

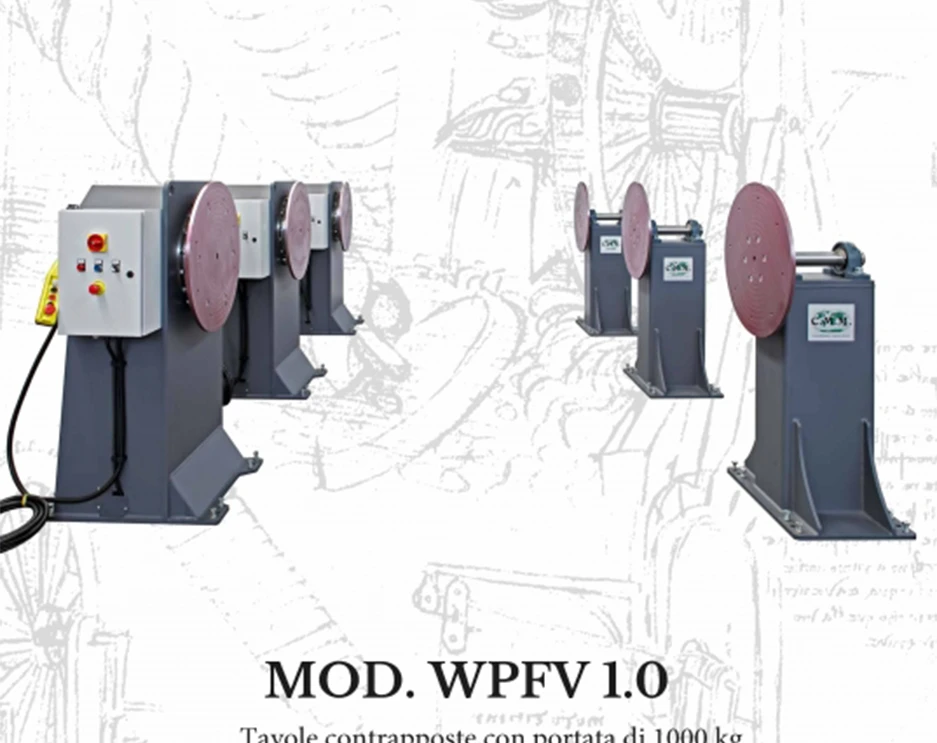

Lathe positioner with opposing tables (one motorized and one free: fixed to the ground or mobile) with one axis: rotation (motorized at variable speed) and designed specifically for long and rotating workpieces. A typical application includes the manufacturing of wind towers, trailer frames, pipes or beams. The load capacity ranges between 1,000 and 20,000 kg.

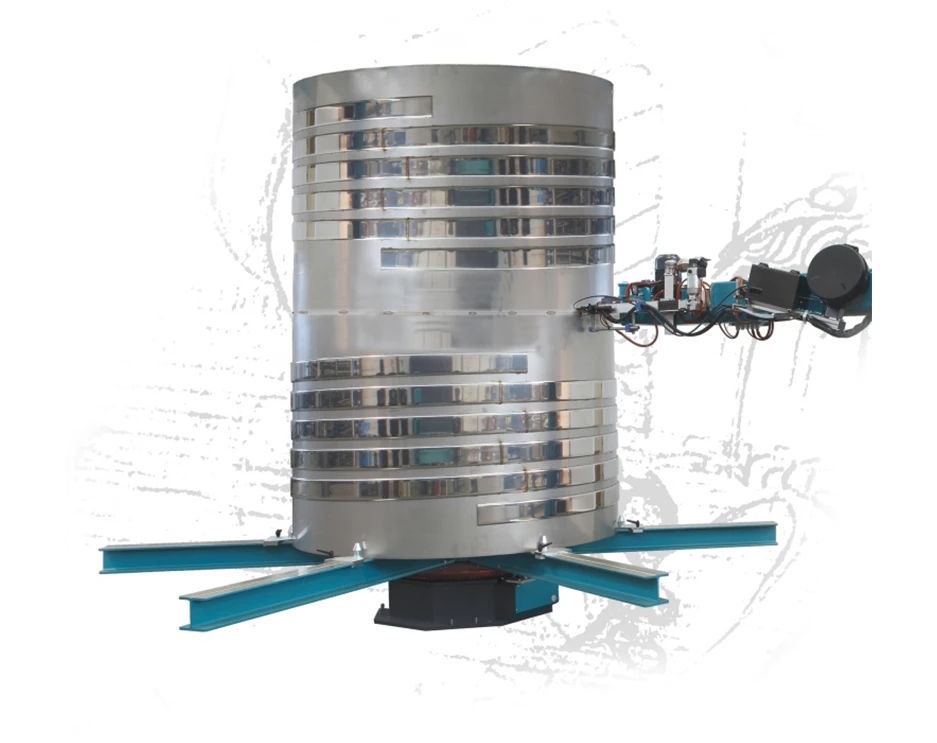

One-axis rotary table with plate in horizontal position for vertical rotation of tanks.

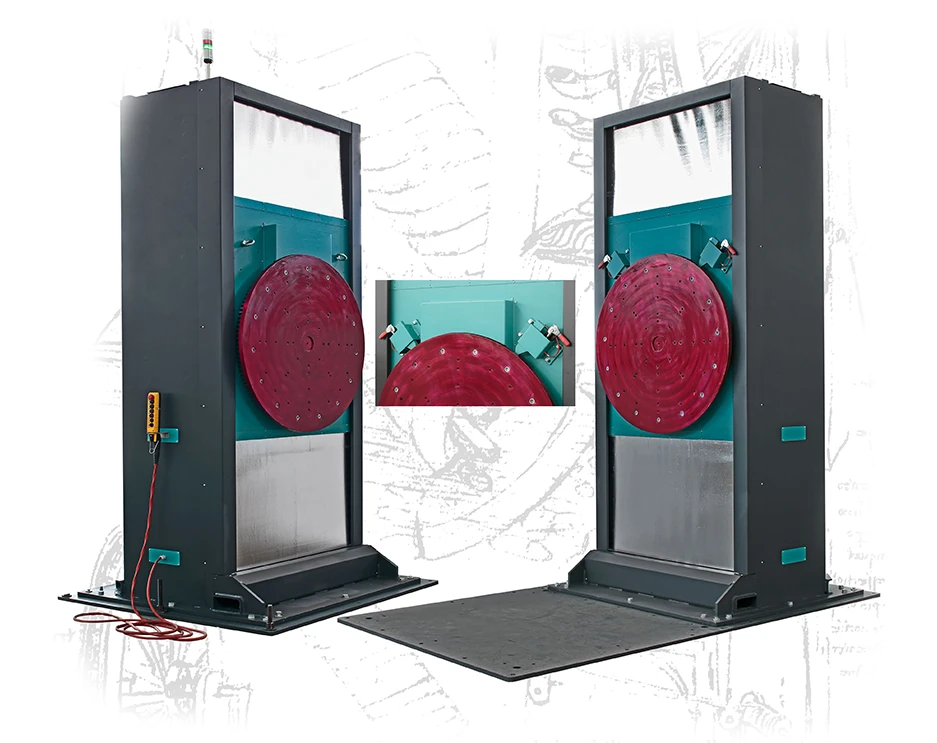

Positioner with two posts with two axes with independent racks: the rotation of the WPV model is complemented by the height adjustment of the front, which always guarantees an optimal working position.

MODELS:

WP

SEE FEATURES
Model WP: 0,4 / 0,7 / 1,2 / 2,5 / 4,0 / 4,0 / 6,0 / 6,0 / 8,0 / 12,0 / 20,0
Payload: 400-20000 Kg
Plate diameter: 750-2500mm
Weight: 380 – 7500 Kg

WPR

SEE FEATURES

WPV

SEE FEATURES
Model WPV WPVR: 0,5/1,0 1,5/3,0 2,5/5,0 5,0/10,0 8,0/16,0 12,5/25,0
Payload motorized: 500 – 12500Kg
Plate diameter: 900 – 1500mm

WPH

SEE FEATURES

VPHR

SEE FEATURES

WPO

SEE FEATURES
Model WPO: 1,0 / 3,0 / 5,0 / 8,0 / 10,0 / 15,0
Payload: 1000 – 15000Kg
Max. diameter: 2000 – 8000mm

WPVR

SEE FEATURES
Model WPV WPVR: 0,5/1,0 1,5/3,0 2,5/5,0 5,0/10,0 8,0/16,0 12,5/25,0
Payload motorized: 500 – 12500Kg
Plate diameter: 900 – 1500mm
Request more information about this machine
