PUNCHING AND DRILLING OF PAXY SERIES PLATES

The Paxy Series is a Geka series of CNC solutions for punching sheets as well as marking and drilling sheets with a max. thickness. 40mm and a max. length. of 18 m.

There are four models of CNC solutions included in the Paxy Series, these are: Paxy 1000, Paxy 1500, Paxy 2000 and Paxy X Plus. These metal processing machines have certain similarities and differences between them.

MODELS:

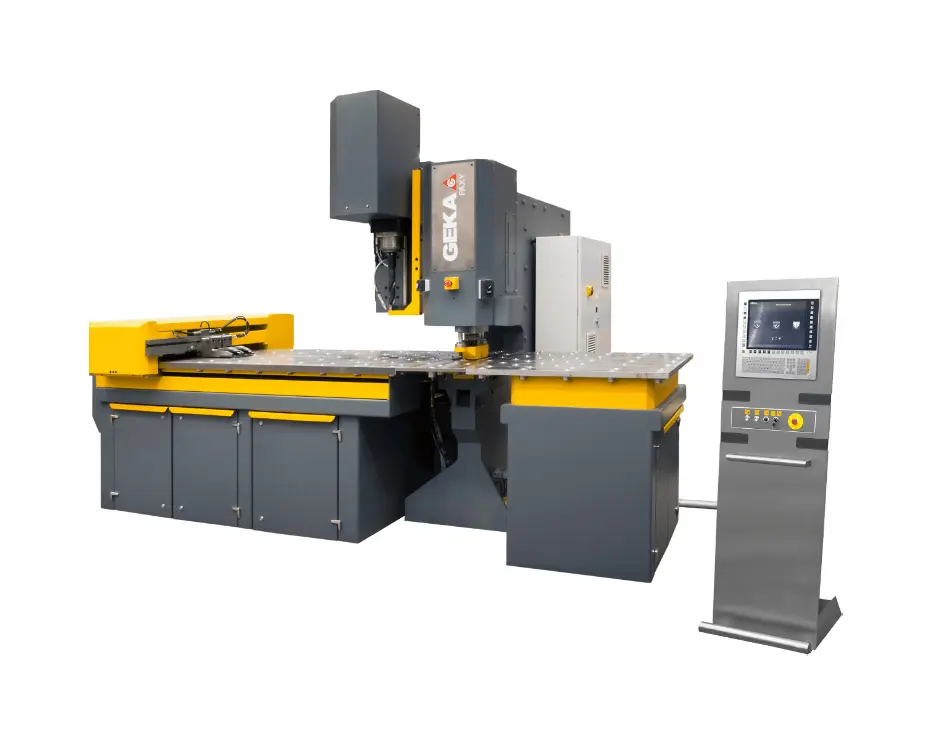

PAXY 1000 – 500

SEE FEATURES

The Paxy series is a steel plate punching CNC Solution with which you will be able to mark, punch and drill steel plates. The Paxy series is part of Geka´s steel plate processing range.

This steel plate punching line is a fully automated CNC Solution that has capacity to work on steel plates with a thickness up to 40mm and a size up to 2000×750mm. The automated feeder of the Paxy series can feed and position the materials with its clamping guides.

FEATURES 1000×500:
Max. length: 1000mm
Max. width: 500mm
Max. thickness: 40mm
Max. diameter: 40mm
Number of punches: up to 3

FEATURES 1500×750:
Max. length: 1500mm
Max. width: 750mm
Max. thickness: 40mm
Max. diameter: 40mm
Number of punches: up to 3

FEATURES 2000×750:
Max. length: 2000mm
Max. width: 750mm
Max. thickness: 40mm

PAXY 1500 – 750

SEE FEATURES

Max. diameter: 40mm

PAXY 2000 – 750

SEE FEATURES

Number of punches: up to 3

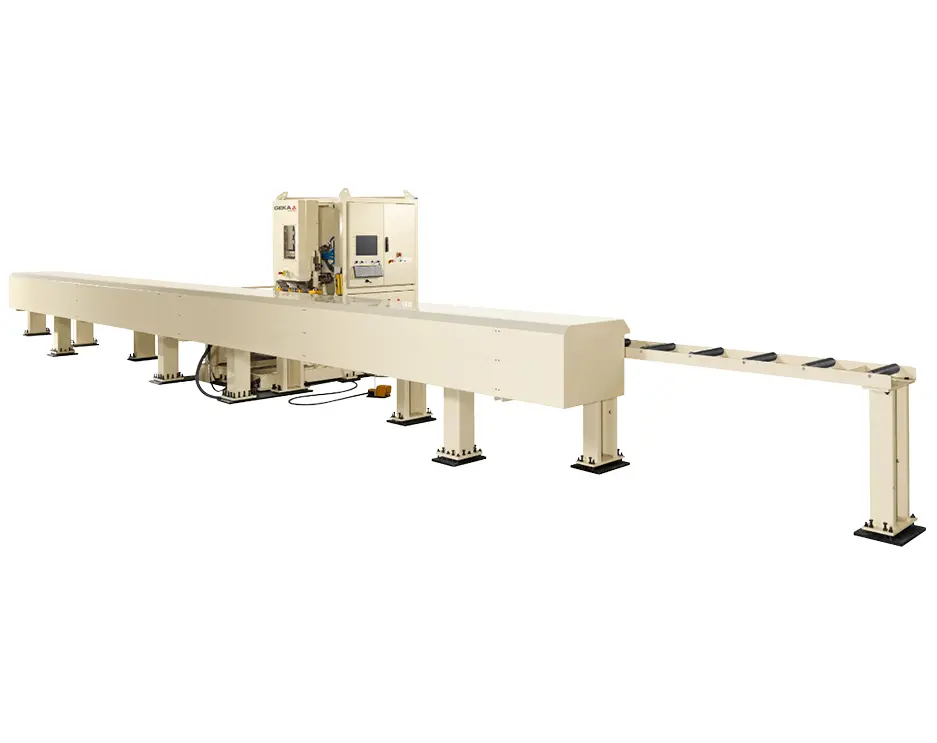

PAXY X PLUS

SEE FEATURES

The Paxy X Plus CNC punching machine belongs to the GEKA Paxy CNC punching machine series. It is a machine that has an automatic processor that allows the marking, drilling and punching of sheets and tires up to 18m in length, since it has capacities based on a material resistance of 45 kg/mm2.

The Paxy X Plus CNC punching is high capacity, has an available power of up to 2200 Kn and has a hydraulic cap extractor. Paxy X Plus allows the punching of sheets and rims up to 40mm thick. In addition, it has up to 3 punches per unit.

FEATURES:
Max. length: 3000 – 18000mm
Max. width: 750mm
Max. thickness: 40mm
Max. diameter: 40mm
Number of punches: up to 3
