SERIE GAMMA TRACTION

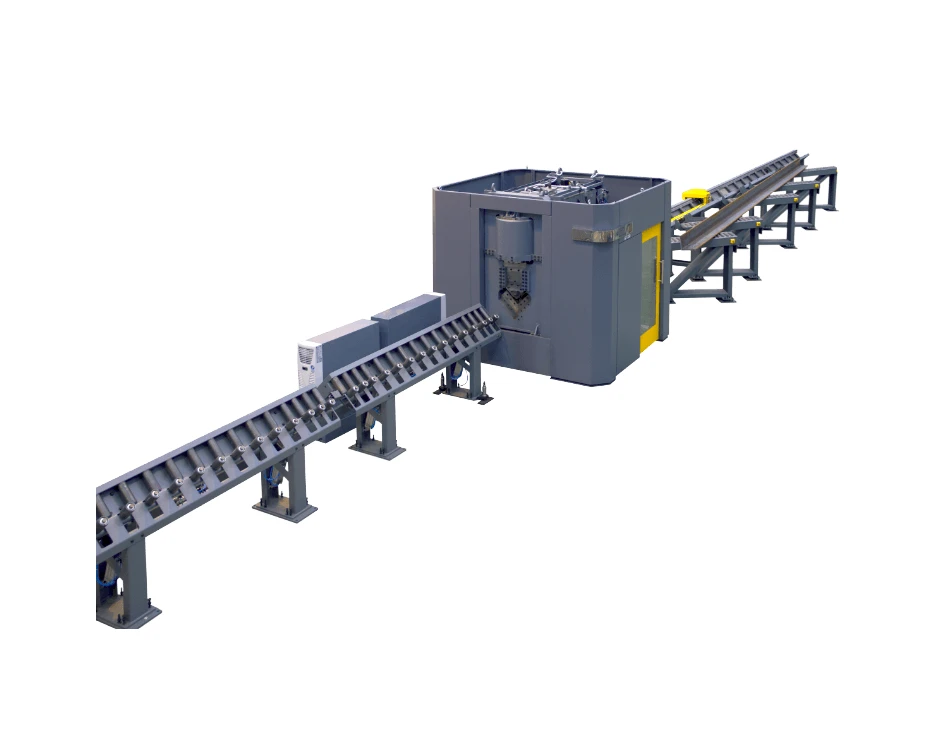

The Gamma Traction 250 CNC punching machine belongs to GEKA’s Gamma CNC punching machine series, which is characterized by having a traction system with clamp and feeding carriage, which allows punching, marking, drilling and angle cutting operations. medium and large size, as it is capable of punching materials with a thickness of up to 16mm and drilling up to 40mm in diameter per wing.

The Gamma Traction 250 solution has 3 punches per wing and a double drilling unit with 8 tools, making it an adjustable precision unit.

This CNC punching machine has a programmable automatic unloading system and cassette marking with programmable positioning of up to 10 characters and 5 different references. Its user interface allows all control to be carried out through a PC, allowing easy and quick access to the blades for changing.

MODELS:

TRACTION 250

SEE FEATURES

Min. angle: 40x40x4mm
Max. angle: 250x250x25mm
Marking: cassette
Characters: 14x10x19mm
Number of punches: 6 (3 / wing)
Max. punching diameter: 31mm
Max. punching diameter through thickness: 31x16mm
Drilling tools: 8 (4 per wing)
Max. drilling diameter: 40mm
Tool Holder: SK40
Shearing force: 5500 kN
