PUNCHING AND CUTTING OF ALFA SERIES BLADES

The Alfa Series is one of Geka’s series of CNC punching machines. These CNC lines are used for punching, marking, drilling and cutting plates. There are two series and five machines within this series: Alfa 150, Alfa 500, Alfa 500/150, Alfa 500/165T and Alfa 500/220T.

All Alfa Series Plate Cutting Machines include a power unit and a user interface with touch screen and remote control. Its punching unit includes a servomotor and a hydraulic extractor stop.

MODELS:

ALFA 150

SEE FEATURES

Alfa 150 is part of the flat bars processing Alfa series. This is a CNC punching solution that can perform automatic CNC punching and shearing of flat bars from 4mm to 12mm thickness.

Flat Bar Size (Min.): 25×4mm
Flat Bar Size (Max.): 150×10mm / 100×12mm
Punches: 2
Max. diameter: 31mm
Punching & Shearing Force: 640 kN

ALFA 500

SEE FEATURES

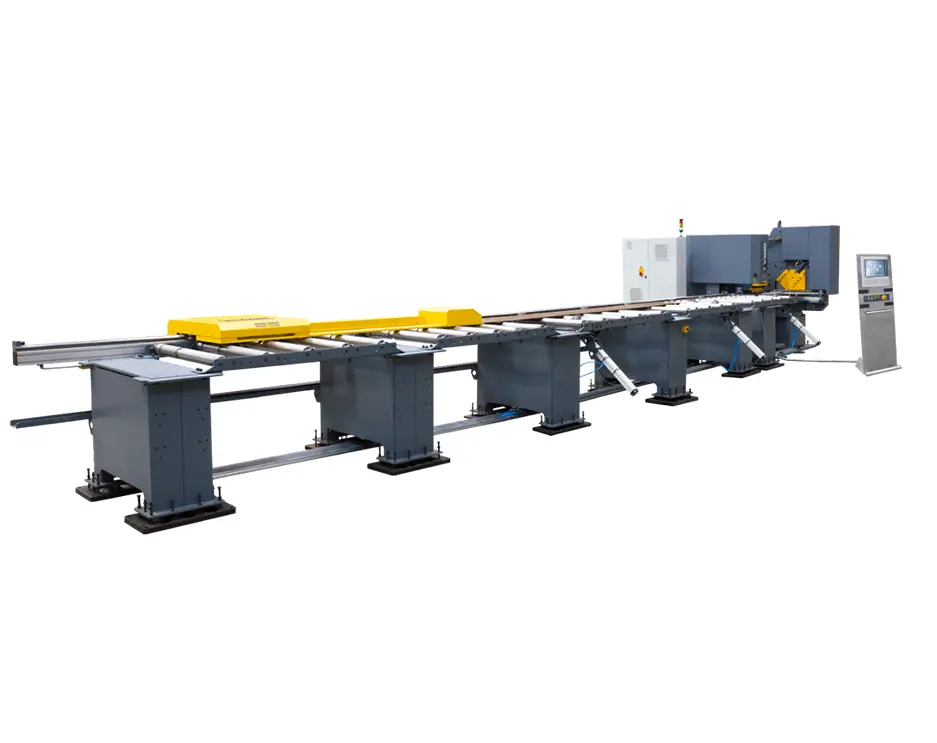

Alfa 500 is a CNC Solution of Geka’s flat bars processing range. The tasks that it can perform are punching, marking, and shearing flat bars. This is a CNC-controlled Automated Line for CNC Punching, Marking and Shearing Flat Bars up to 12 m in length.

Flat Bar Size (Min.): 50×5mm
Flat Bar Size (Max.): 500×20mm
Horizontal-Wing Punches: 3
Max. Diameter: 40mm
Punching Force: 1100 kN
Marking: disc
Number of characters : 40

ALFA 500/150

SEE FEATURES

Alfa 500/150 is an automatic CNC processing Line for CNC punching, marking and shearing flat bars up to 500mm wide and 20mm thick and Angles up to 150mm x 15mm. It is part of Geka´s flat bars processing range.

Flat Bar Size (Min.): 50×5mm
Flat Bar Size (Max.): 500×20mm
Horizontal-Wing Punches: 3
Max. Diameter: 40mm
Punching Force: 1100 kN
Marking: disc
Number of characters: 40
Vertical wing punches: 1
Max. Diameter: 31mm
Vertical Punching Force: 600 kN
Angle (Min. Size): 50x50x5mm
Angle (Max. Size): 150x150x15mm

ALFA 500/165T

SEE FEATURES

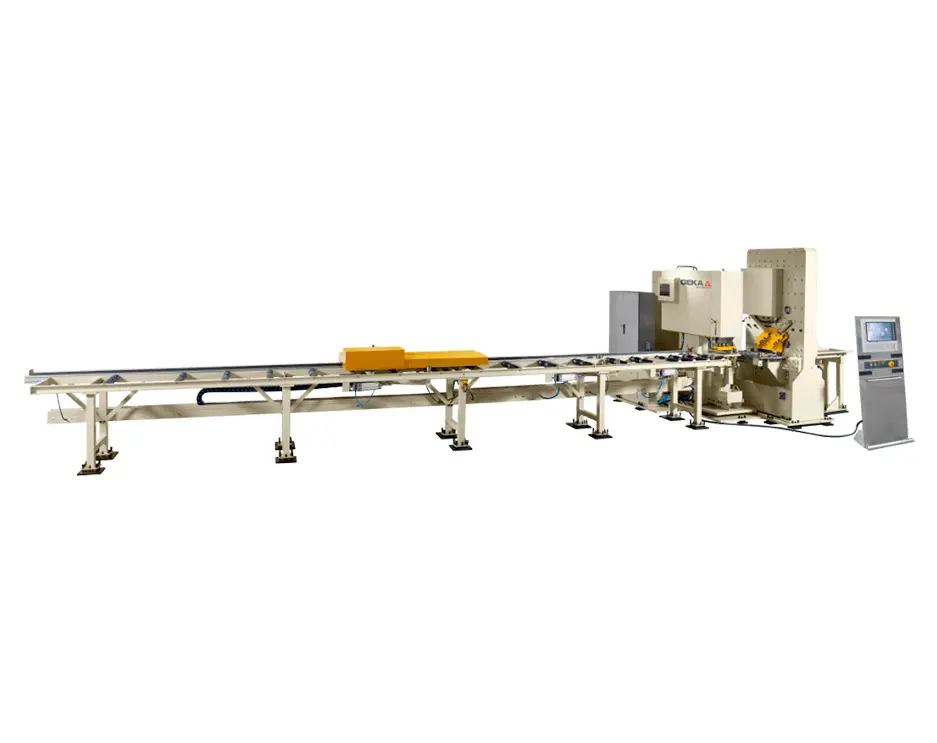

Alfa Plus is part of Geka’s Alfa series for processing flat bars. It is an automatic CNC Line for punching, drilling, marking and shearing flat bars. This CNC line has two CNC punching machines: Alfa 500/165T and Alfa 500/220T. The differences between them are the Max. flat bar thickness they can perform: 25mm in the Alfa 500/165T and 35mm in the Alfa 500/220T, and their punching force: 1650 kN in Alfa 500/165T and 2200 kN in Alfa 500/220T.

Both of this Geka CNC lines are controlled AUTOMÁTICAlly when punching, shearing, marking and drilling flat bars up to 12 m in length. They are provided with a Triple Head Punching Unit for diameters up to 40mm, and a shearing unit up to 500×40mm.

FEATURES 500/165T:
Flat Bar Size (Min.): 100×10mm
Flat Bar Size (Max.): 500×25mm
Number of Punches: up to 3
Max. Diameter: 40mm
Punching Force: 1650 kN
Marking: disc
Number of characters: 40

Flat Bar Size (Min.): 100×10mm
Flat Bar Size (Max.): 500×35mm
Number of Punches: up to 3
Max. Diameter: 40mm
Punching Force: 2200 kN
Marking: disc

ALFA 500/220T

SEE FEATURES

Number of characters: 40
