TECOI

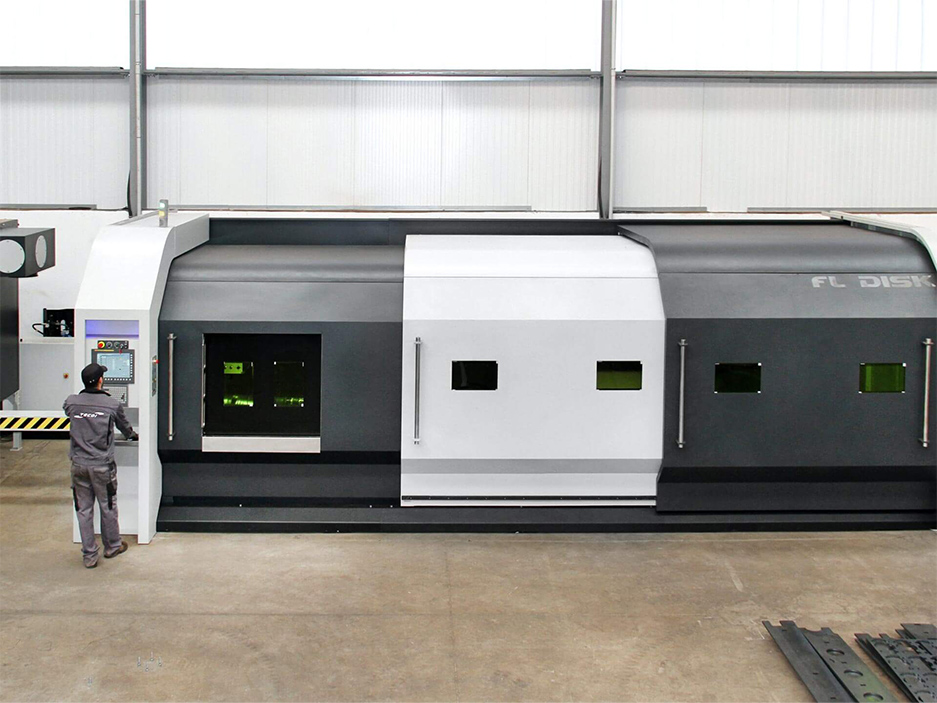

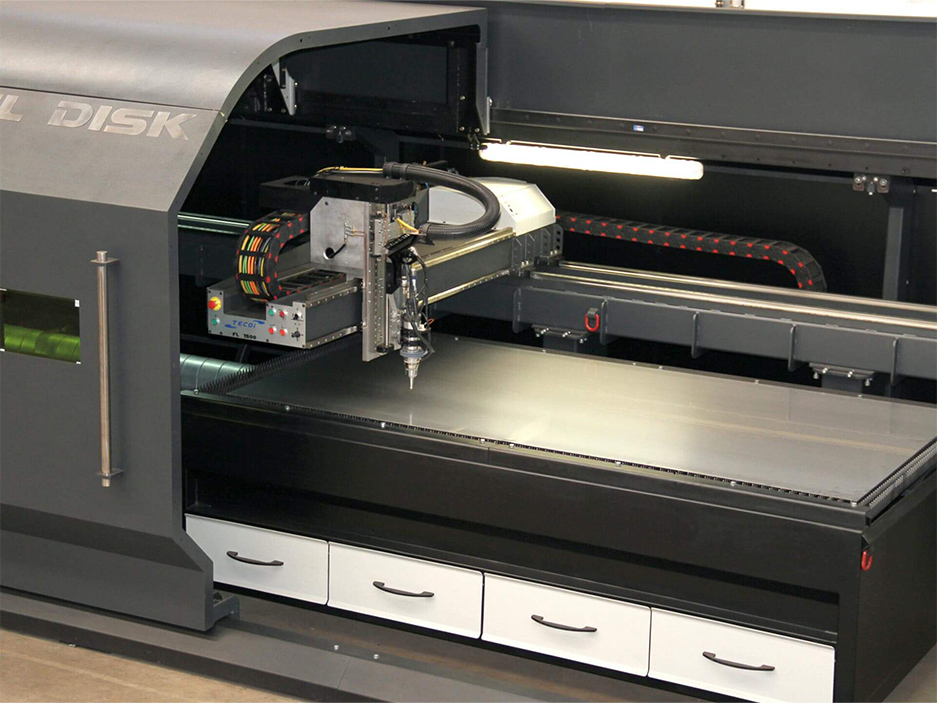

FL SERIES
The FL series models are the ideal solution for tube and profile cutting processes.
using plasma, oxyfuel and solid-state laser, being able to enable an area of the machine for flat cutting or even beveling work.
TECOI offers a wide range of specific models such as: FL for sheet metal cutting, FL TUBE for tube cutting and FLA for plasma or laser tube cutting with automated loading and unloading.
The different options available in lifting systems and automatic lathes provide great flexibility in the ideal machine configuration for each client.
FL
Useful cutting length: Up to 18000mm
Useful cutting width: Up to 2000mm
Maximum speed: 80 m/min
Cutting source: Laser, plasma and oxyfuel
Product to be processed: Plates 12000 x 2000mm (470×78”)
FL tube
Useful cutting length: Up to 18000mm
Useful cutting width: Up to 2000mm
Maximum speed: 80 m/min
Cutting source: Laser, plasma and oxyfuel
Product to be processed: Pipe up to Ø1200mm / Profile up to Ø400mm
FLA
Maximum pipe length: 12200mm
Processable pipe range: from Ø40 to Ø250mm
Processable profile range: inscribed up to Ø400mm
Maximum speed: 110 m/min
Free Z axis height: 500mm
Mechanical positioning accuracy: ±0.1mm. (±4 mil)
Tube feeder: automatic from Ø40 to Ø250mm
Tube extraction: automatic from Ø40 to Ø250mm
