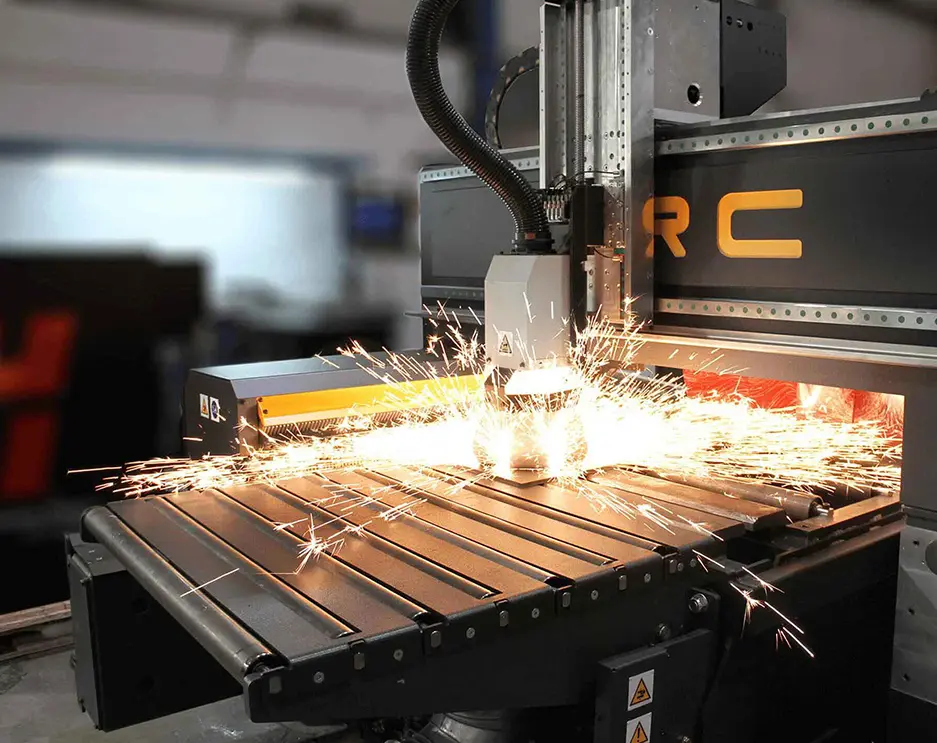

TECOI DRC
Compact station for intensive use in thermal cutting processes, machining or both, combined with an automatic parts evacuation system. Its extreme robustness and quality make it ideal for processes of maximum precision and repeatability.
PRECISION IN SMALLER SPACE. Designed for industries that plan to complement their sheet metal transformation offering without the need to install a large machining center.
AUTOMATIC EXTRACTION. Automatic extraction system for processed parts using a folding hatch. It can in turn be connected with an extractor belt to a selection and storage area.
PRODUCTIVITY. The material is arranged in mobile drawers or selection tables for subsequent manipulation. With this system, non-productive time is reduced by up to 30%.
FEATURES:
*Working width up to 1000mm.
*Working length up to 6000mm.
*Z axis height: 150mm.
*Plasma power from 30 to 280 Amp.
*The IMZ (Intelligent Movement Z – axis) system reduces cutting process time by up to 30%, allowing faster and more precise positioning of the cutting head to the material. Increases productivity up to 70% between drilling.
*Max. speed displacement: 40 m/min. (131 ft/min.)
*Equipped with FANUC™ control and motor systems, which include touch screen, absolute encoders and fiber optic communications.
*Incorporates SPC systems for total drilling control and SAC to minimize the effect of collisions.
