TBL LINE
MODELS:

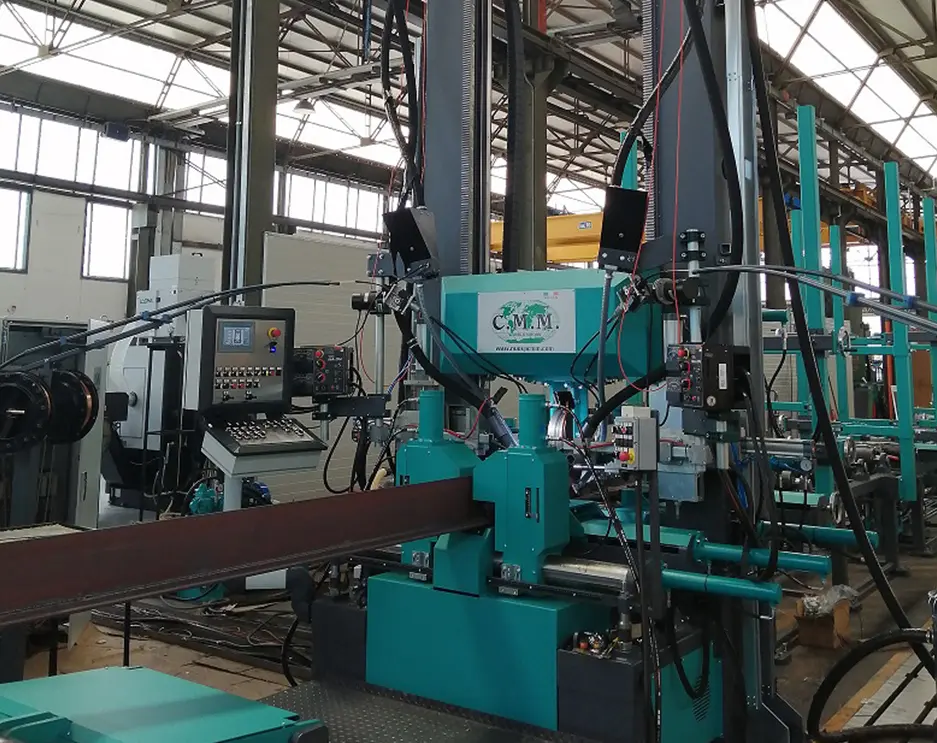

LIGHT SIZE
SEE FEATURES
Web height: 180 – 2000mm
Web thickness: 8 – 25mm
Flange width: 100 – 1000mm
Flange thickness: 8 – 50mm
Weight up to 1000 kg/m
Length: 2000 – 25000mm
Web thickness: 8 – 25mm
Flange width: 100 – 1000mm
Flange thickness: 8 – 50mm
Weight up to 1000 kg/m
Length: 2000 – 25000mm
MEDIUM SIZE
SEE FEATURES
Web height: 200 – 3000mm
Web thickness: 8 – 30mm
Flange width: 150 – 1250mm
Flange thickness: 8 – 50mm
Weight up to 2000 kg/m
Length: 2000 – 45000mm
Web thickness: 8 – 30mm
Flange width: 150 – 1250mm
Flange thickness: 8 – 50mm
Weight up to 2000 kg/m
Length: 2000 – 45000mm

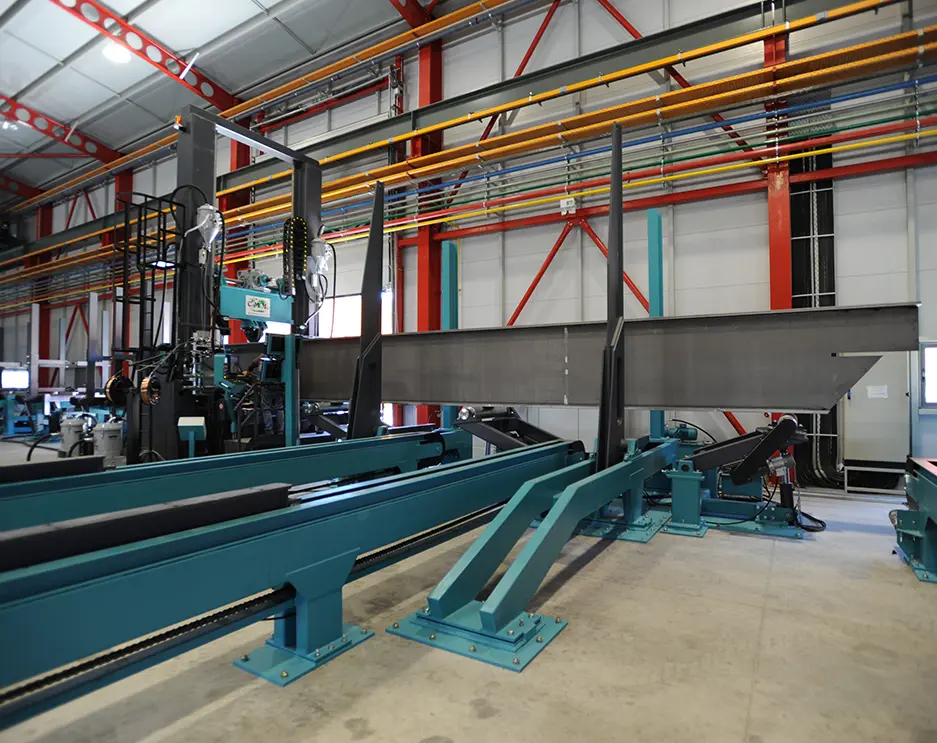

HEAVY SIZE
SEE FEATURES
Web height: 250 – 5000mm
Web thickness: 8 – 50mm
Flange width: 100 – 2000mm
Flange thickness: 8 – 100mm
Weight up to 3000 kg/m
Length: 2000 – 45000mm
Web thickness: 8 – 50mm
Flange width: 100 – 2000mm
Flange thickness: 8 – 100mm
Weight up to 3000 kg/m
Length: 2000 – 45000mm

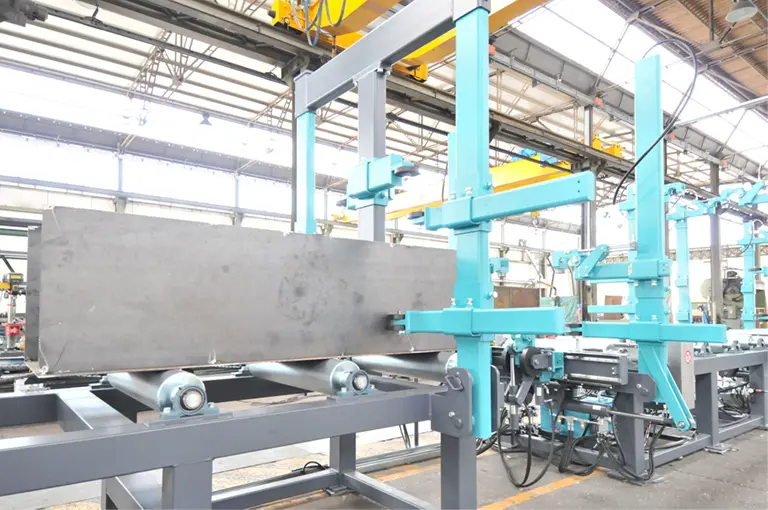

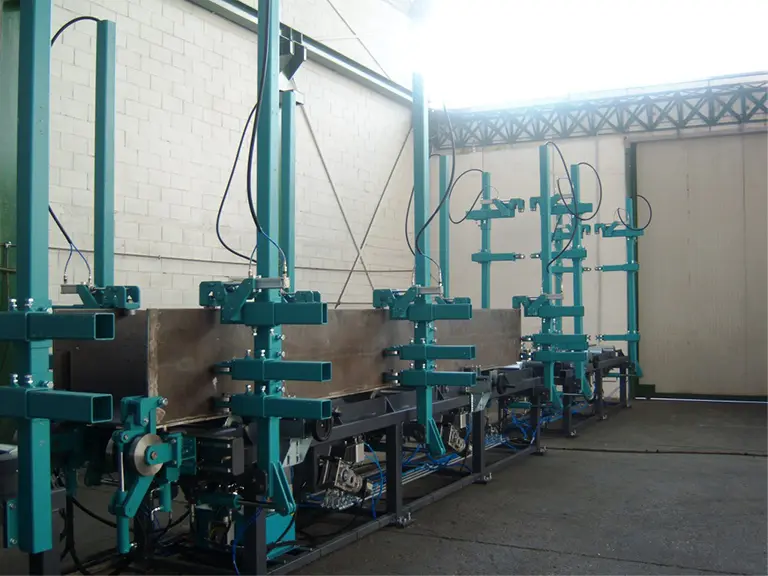

BOX APPLICATION
SEE FEATURES
Web height: 1000 – 1530mm
Web thickness: 8 – 30mm
Flange width: 800 – 1250mm
Flange thickness: 8 – 50mm
Weight up to 2000 kg/m
Length: 2000 – 25000mm
Web thickness: 8 – 30mm
Flange width: 800 – 1250mm
Flange thickness: 8 – 50mm
Weight up to 2000 kg/m
Length: 2000 – 25000mm

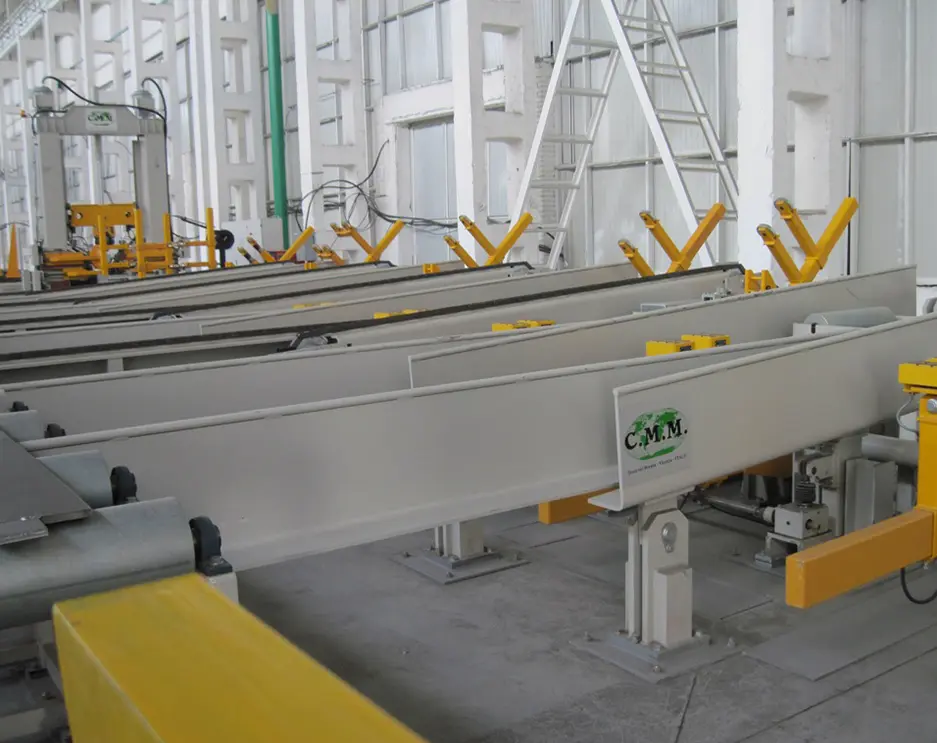

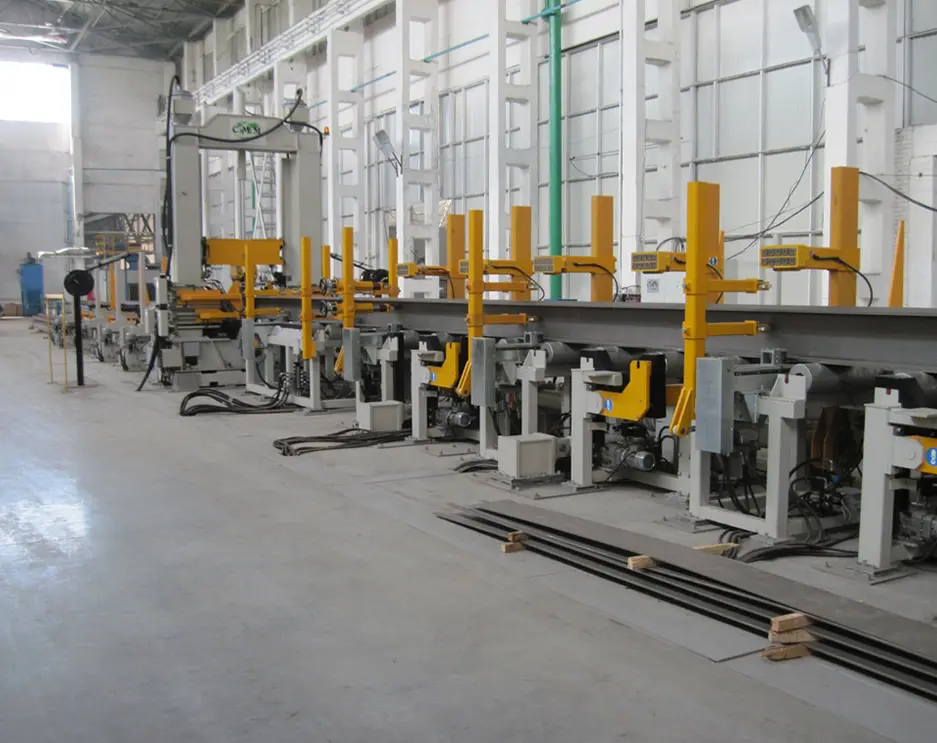

INTEGRATED LINES
SEE FEATURES
Web height: 180 – 2000mm
Web thickness: 8 – 25mm
Flange width: 100 – 1000mm
Flange thickness: 8 – 50mm
Weight up to 1000 kg/m
Length: 2000 – 16000mm
Web thickness: 8 – 25mm
Flange width: 100 – 1000mm
Flange thickness: 8 – 50mm
Weight up to 1000 kg/m
Length: 2000 – 16000mm
