PEMA
SKYTRACK
PEMA Skytrack is designed for workshops that look to increase their production on flexibility and scalability.
It combines state-of-the-art robotics, intelligent software, and advanced welding technology to deliver high-quality welds with exceptional efficiency.
Robotic welding has never been this easy – just plug and weld.
FEATURES:
2 tn payload
PEMA Skytrack is equipped with PEMA Skyhook Pro welding positioner with 2 tn workload.

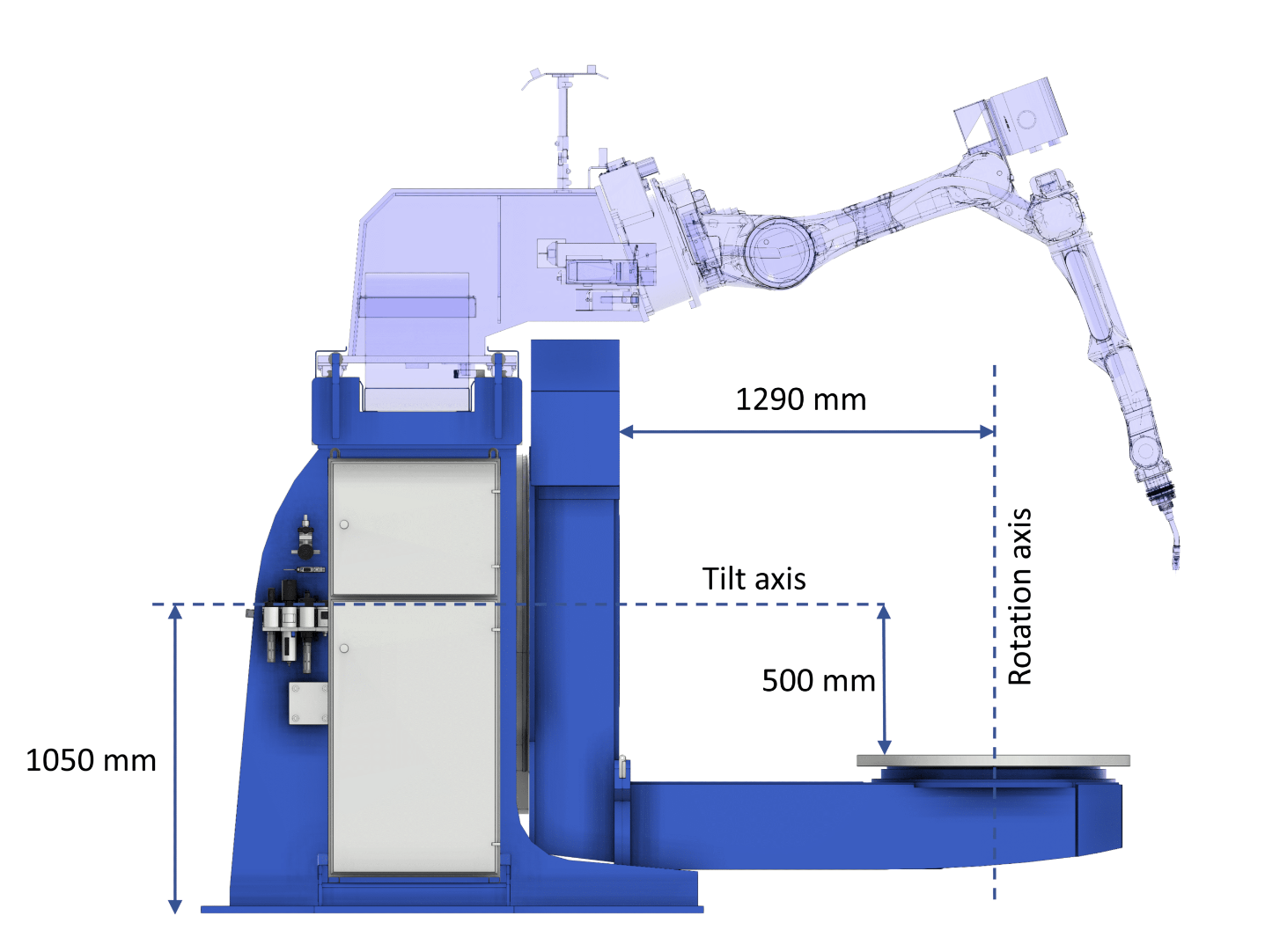

Small footprint
The footprint with the standard light curtain is 25m2. With optional safety door 21m2.

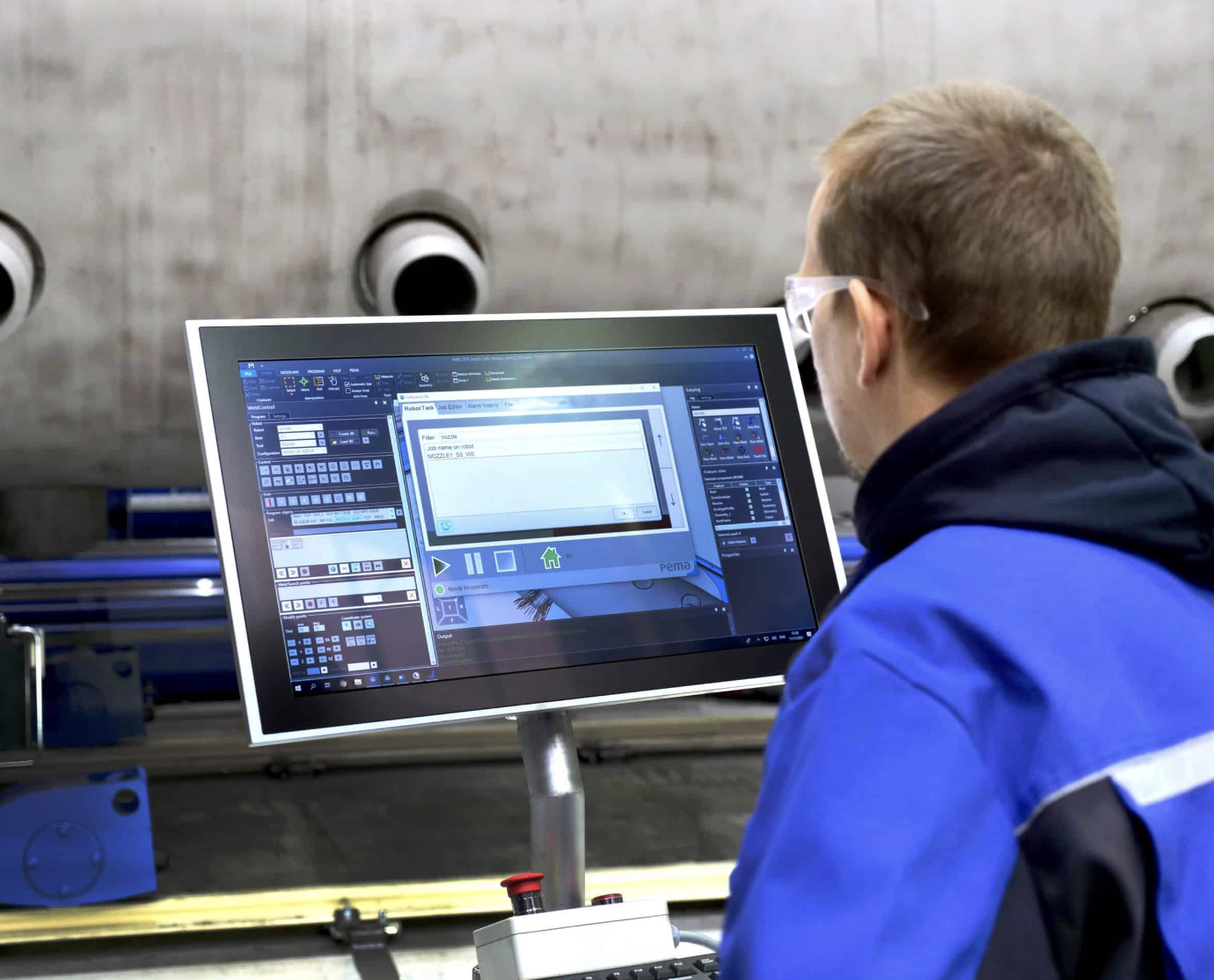

Easy to use
Programming and operating with PEMA Skytrack is easy to master.
The robot needs no special foundation and is movable with a regular forklift.
Full-featured
The standard station includes:
- PEMA Skyhook Pro welding positioner
- Yaskawa AR2010 robot arm
- Welding power source 32A
- Standard safety equipment
- CE marked
Fast ROI
Return-on-investment is calculated based on your current manufacturing process. If there is welding for two work shifts, typical ROI is 2–3 years.
Options
Options to boost automation capabilities and welding adaptivity:
- PEMA WeldControl Offline software
- PEMA AutoScan software
- Safety door
