PEMA APSi SKYMASTER

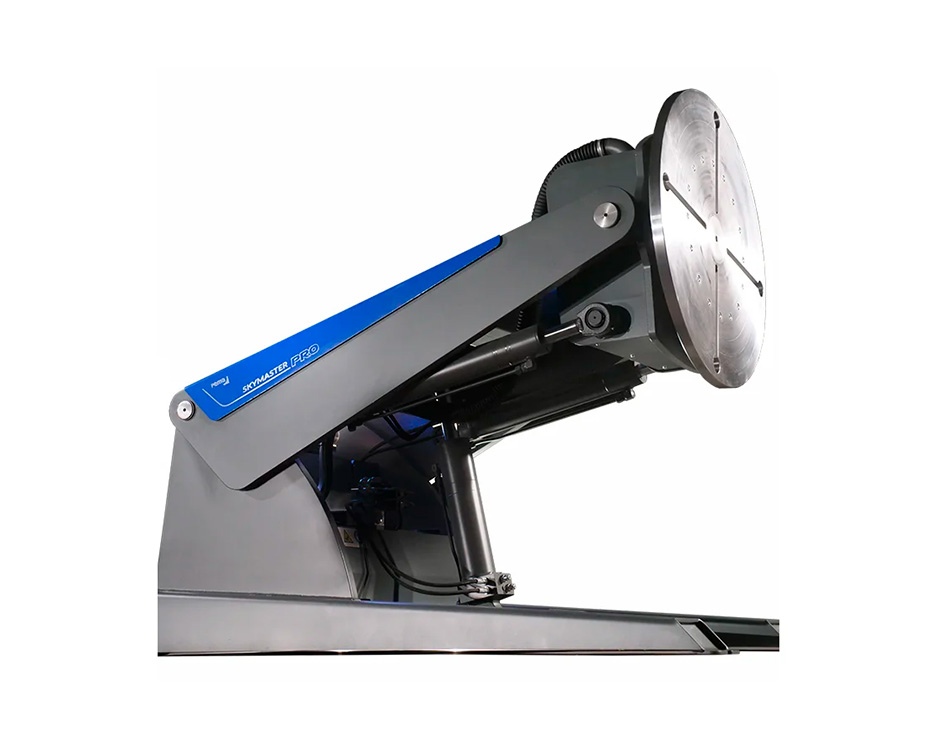

PEMA Skymaster PRO positioner for extra heavy duty work. The height, inclination and rotation speed of the workpiece are fully adjustable and programmable.
Optimal and repeatable position for ergonomics, increased capacity and simulated movements for safety. As a result, welding productivity can be significantly increased compared to conventional positioner.
PRO features are available with mobile devices, tablets and laptops over WiFi. The PRO application includes, for example, programming for the positioner, machine diagnostics, maintenance book and the ability to add notes.
Hundreds of labor hours saved annually compared to manual handling of workpieces. With PEMA Skymaster PRO these hours can be used in real productive work.
FEATURES:
*Remotely programmable movements and memory function.”
*Library for stored work cycles and handling positions”
*Quick and easy learning period for a new employee”
*Quick and easy learning period for a new employee”
*Complete diagnostics and data for product maintenance.
MODELS:
PEMA APSi 750
SEE FEATURES
Maximum load: 7500N
Min – max height: 730 – 1450mm
Length: 1580mm
Width: 700mm
PEMA APSi 1500
SEE FEATURES
Maximum load: 15000N
Min. height – max.: 780 – 1550mm
Length: 1640mm
Width: 810mm
PEMA APSi 3500
SEE FEATURES
Maximum load: 35000N
Min – max height: 980 – 1750mm
Length: 2340mm
Width: 1030mm
PEMA APSi 7000
SEE FEATURES
Maximum load: 70000N
Min. height – max.: 1000 – 1850mm
Length: 2560mm
Width: 1490mm
PEMA APSi 10000
SEE FEATURES
Maximum load: 100000N
Min. height – max.: 1090 – 2030mm
Length: 2900mm
Width: 1590mm
PEMA APSi 15000
SEE FEATURES
Maximum load: 150000N
Min – max height: 1300 – 2330mm
Length: 3150mm
Width: 1820mm
PEMA APSi 25000
SEE FEATURES
Maximum load: 250000N
Min – max height: 1600 – 2860mm
Length: 4000mm
Width: 1950mm
PEMA APSi 35000
SEE FEATURES
Maximum load: 350000N
Min. height – max.: 2000 – 3500mm
Length: 4360mm
Width: 2120mm
