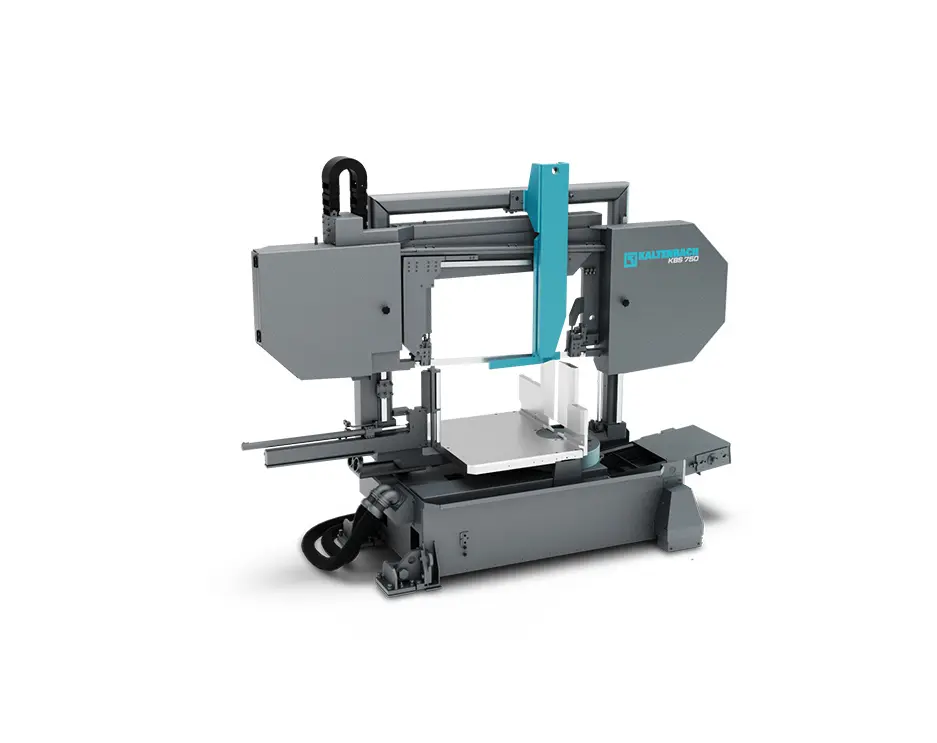

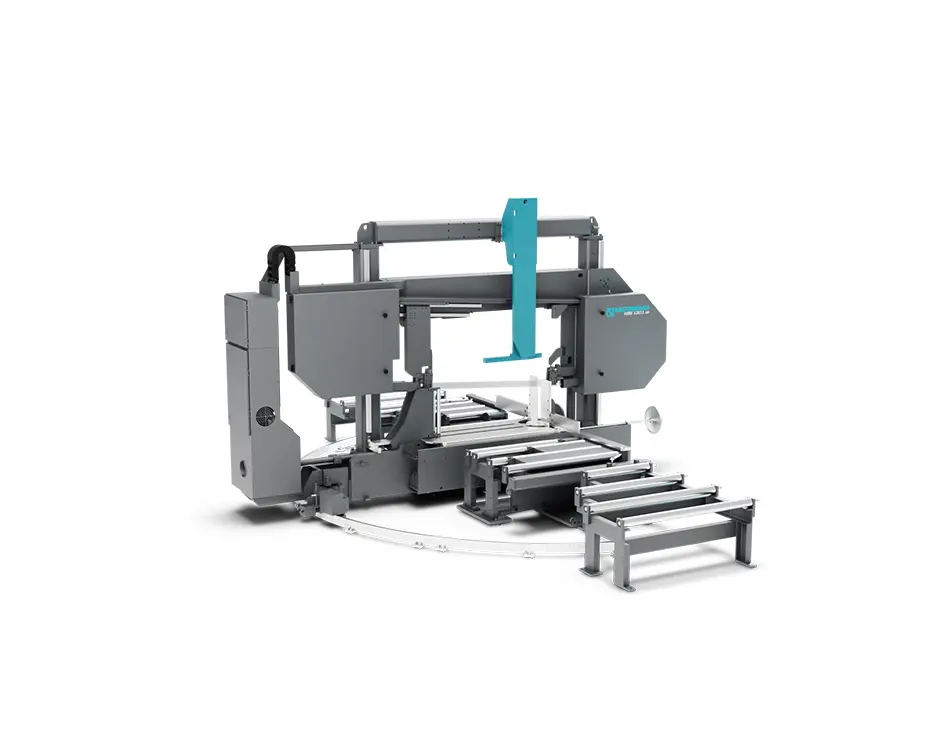

KALTENBACH

KBP 736|1036|1336



  • Highest cutting performance
  • Long machinery life
  • Robust construction
  • Highest automation possibilities
  • Precise setting of cutting angle
  • Significant reduction of cutting time by means of Auto Feed Control

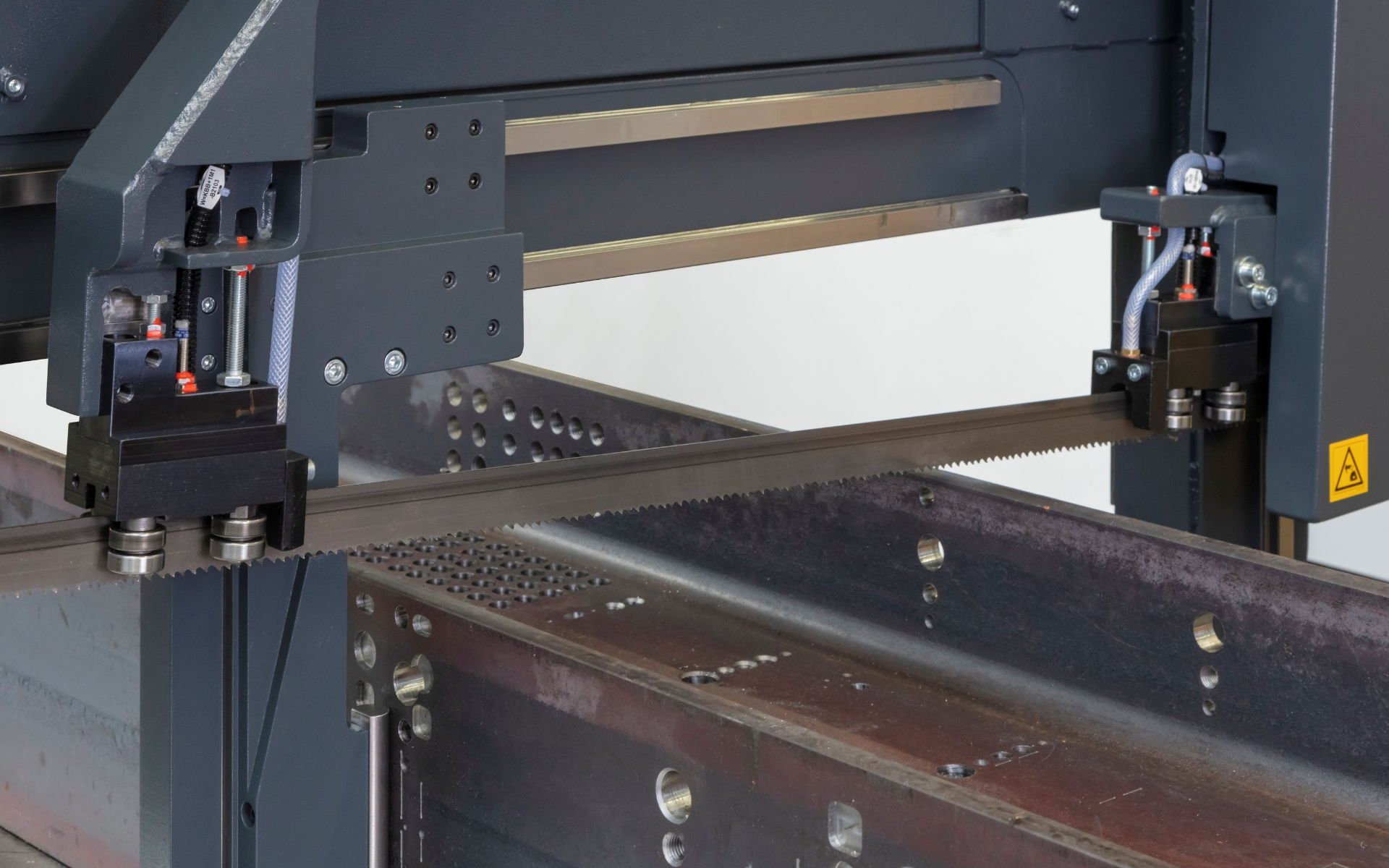

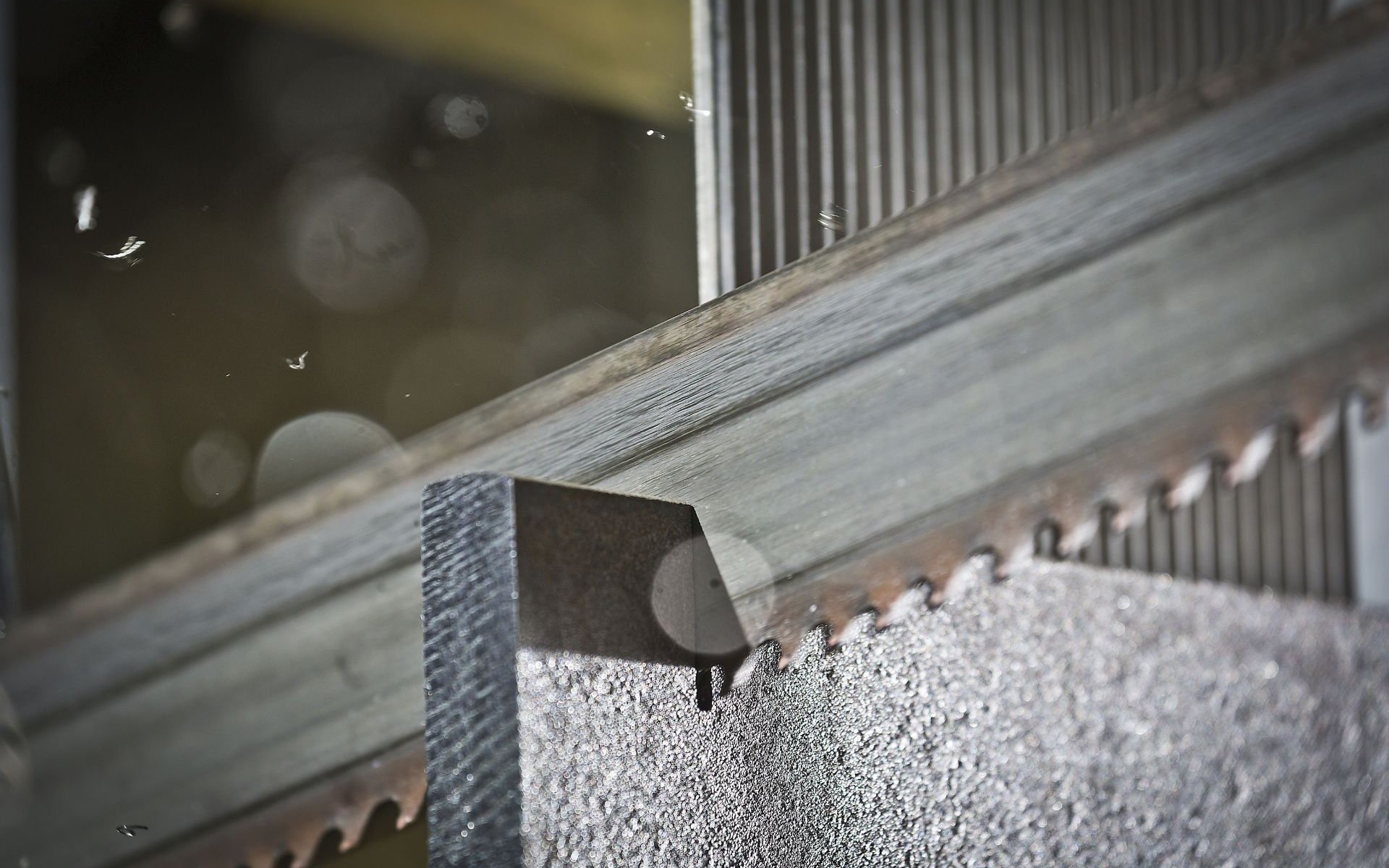

 Outstanding cutting performance Auto Feed Control (AFC)

  • Precise positioning
  • Automatic tilt angle adjustment of the saw band in case of heavy products
  • Significantly reduced cutting times

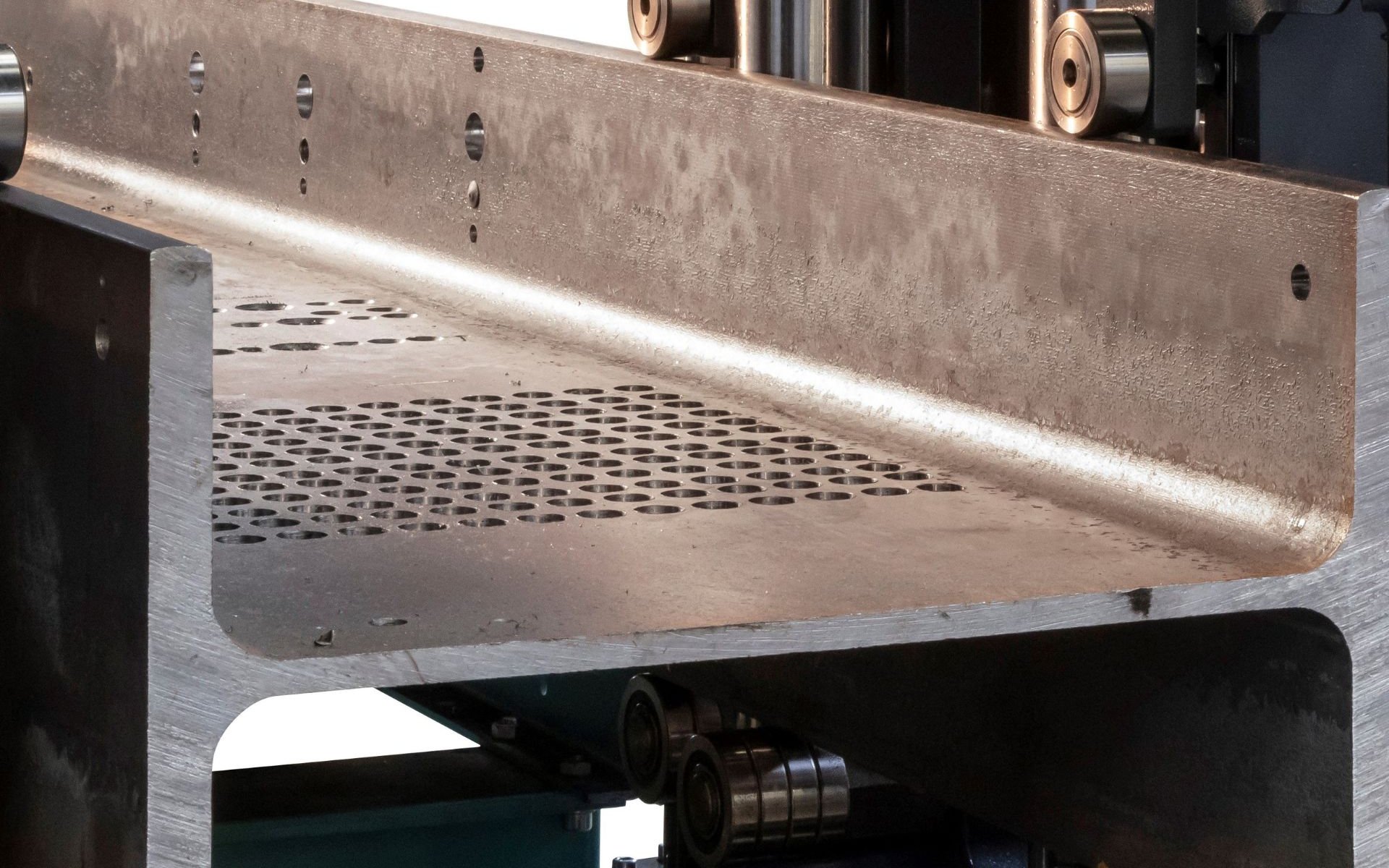

  • First class end products

 Optimal Feed

  • Saw feed with ball screw and servomotor
  • Constant and temperature-independent feed
  • Low idle times and higher machine utilization

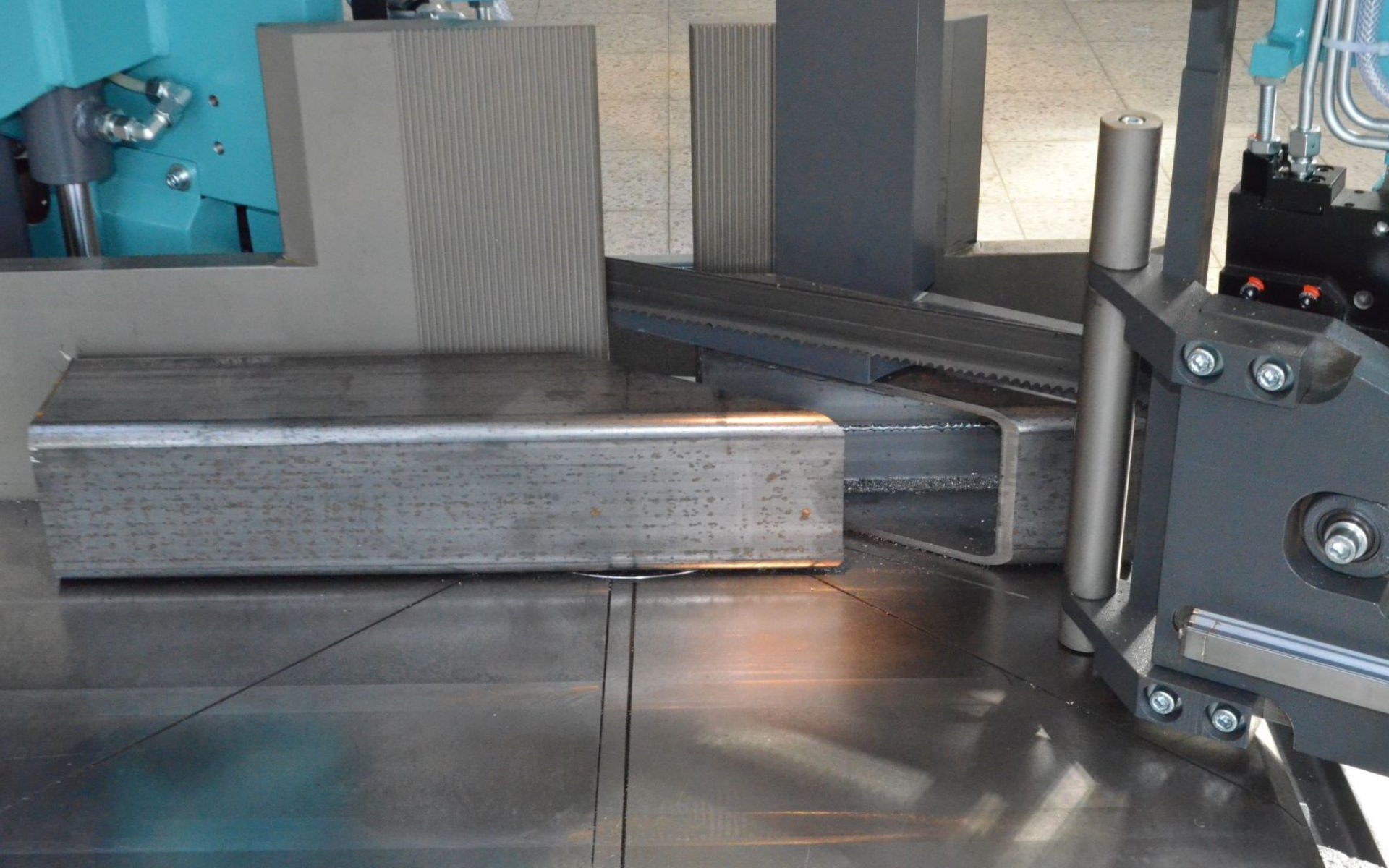

 Precise setting

  • NC-controlled angle setting
  • High quality cuts
  • NC-standard enables highest reliability

 Powerful and reliable clamping

  • Horizontal and vertical clamping device
  • Low vibrations for long saw band lifetime and low operating costs
  • Cutting of material layers and bundles possible

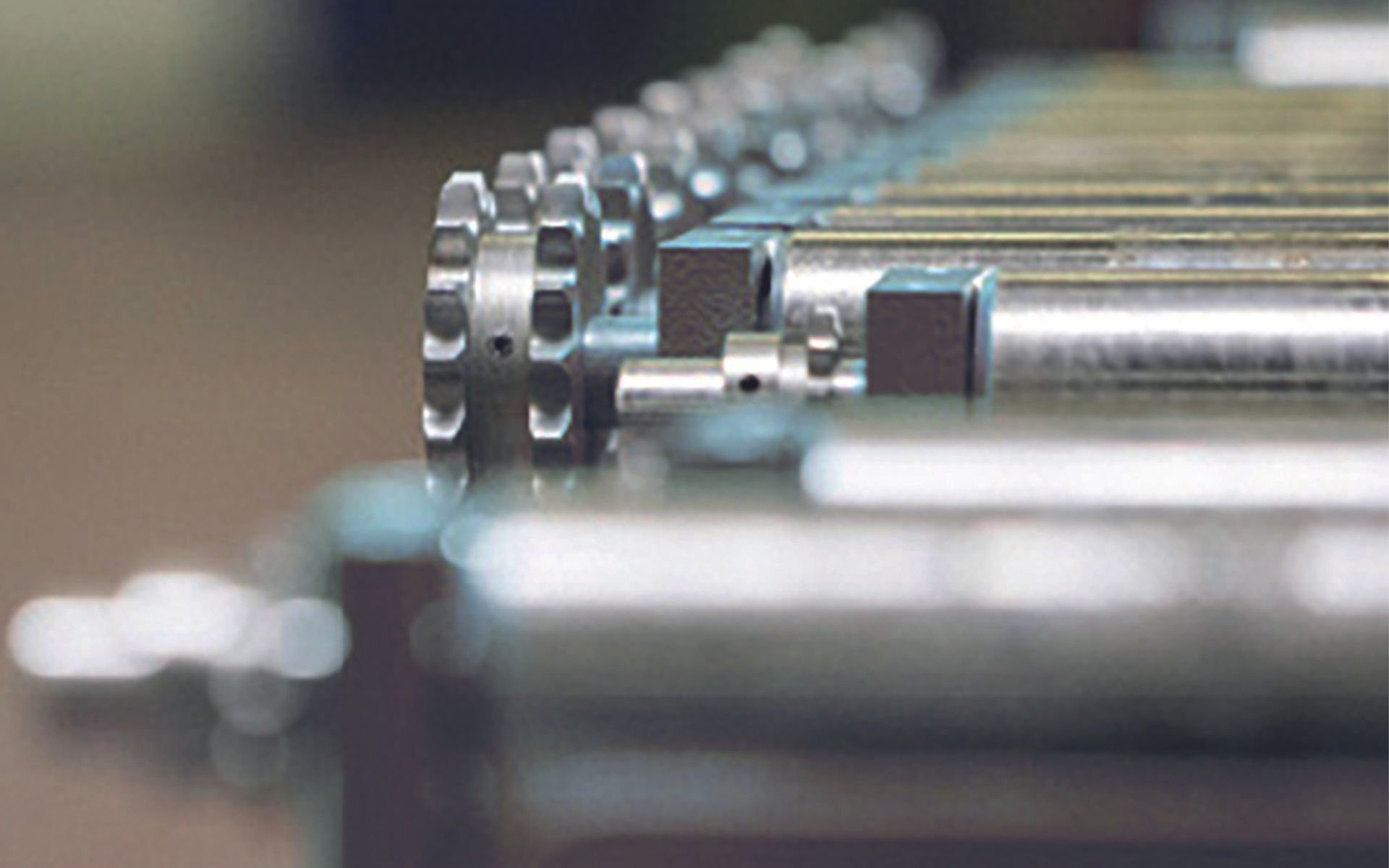

 Optimal process flow

  • Accurate positioning of material at in- and outfeed side
  • Measuring carriages with various types of pushers and grippers
  • Length stop LS 220 and LS 270

 Full system automation

  • Automated outsorting of short parts
  • SPG – Short piece gripper for outsorting at one side
  • AS – Autosorter AS 1000 for outsorting at both sides
KBP 701

Workspace 90° [mm]: 750 x 500

Before: KBS 761

KBP 1001

Workspace 90° [mm]: 1,030 x 500

Before: KBS 1051

KBP 1301

Workspace 90° [mm]: 1,330 x 500

Before: KBS 1351
